Airborne GNSS

Overview
  • · High-gain, wide-beam characteristics deliver excellent reception performance even at low elevation angles, enabling reliable satellite signal reception in heavily shielded environments
  • · Front-end and multi-stage filtering architecture effectively suppresses out-of-band jamming and interference
  • · An integrated voltage stabilisation circuit ensures stable operation across a wide input voltage range
  • · Features an integrated waterproof design with a protection rating of IP65
Description

Aviation GNSS antennas are designed to provide stable and reliable satellite navigation signal reception for aircraft, unmanned aerial vehicles (UAVs), and high-speed mobile platforms. Taking into account the demanding conditions of aviation environments—such as high-speed movement, vibration, and variations in air pressure and temperature—these antennas are engineered with a strong focus on lightweight construction, environmental robustness, and signal stability.

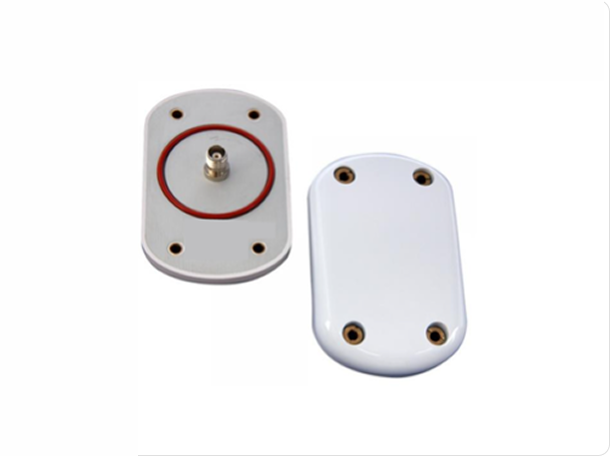

Aviation GNSS antennas are typically configured in a mini airborne antenna form factor, featuring a compact and low-weight design optimised for integration into airborne platforms and other applications where size, weight, and performance are critical.

FDN4046A FDN4026 FDN4076 FDN4076A FDN4076B
Mini airborne antenna 3-constellation, 7-band 4-band Light weight 3-constellation, 7-band
Receiving frequency [MHz] 1268±12MHz &
1561±5MHz, 1575±10MHz & 1602±10MHz 		1559~1577MHz 1557 ~ 1612MHz & 1197 ~ 1278MHz 1559.052 ~ 1612MHz & 1205.094 ~ 1278MHz 1557 ~ 1612MHz & 1164 ~ 1278MHz
Gain [dB] ≥ 3.0 dBi (Elevation angle 90°) ≥ 4.5 dBi (Elevation angle 90°) ≥ 3.5 dBi (Elevation angle 90°) ≥ 4.5 dBi (Elevation angle 90°) ≥ 3.0 dBi (Elevation angle 90°)
Polarisation RHCP RHCP RHCP RHCP RHCP
Axial ratio [dB] ≤ 3.0 dB ≤ 3.0 dB ≤ 3.0 dBi(90°) ≤ 3.0 dBi(90°), ≤ 5.0 dBi(60°)
LNA specifications
Frequency range [MHz] 1268±12MHz &
1561±5MHz, 1575±10MHz & 1602±10MHz 		1559~1577MHz 1557 ~ 1612MHz & 1197 ~ 1278MHz 1559.052 ~ 1612MHz & 1205.094 ~ 1278MHz 1557 ~ 1612MHz & 1164 ~ 1278MHz
Gain [dB] 38±2 dB 42±3 dB 42±2 dB 40±2 dB 39±2 dB
VSWR < 2.0 < 2.0 < 1.8 < 2.0 < 2.5
Noise figure [dB] < 2.0 dB < 2.5 dB < 2.0 dB < 2.0 dB < 2.5 dB
Gain flatness [dB] ±2.0 dB ±2.0 dB ±1.0 dB ±2.0 dB ±1.5 dB
Input voltage [VDC] 5.0 ± 1.0 VDC 5.0 ± 0.3 VDC 3 ~ 5 VDC 3 ~ 12 VDC 3 ~ 5 VDC
Consumption current [mA] < 120 mA < 55 mA < 55 mA < 45 mA < 55 mA
Size [mm] 119.4 x 76.2 x 19.2mm 86.4 x 55.7 x 25mm 119.4 x 76.2 x 21.5mm ɸ90 x 25.8mm ɸ89 x 25mm
