High-Precision GNSS

Overview
  • ·Dimensions: Φ100.0 × 25.5 mm
  • ·I ntegrated RTK (Real-Time Kinematic) capability
  • · Multi-band support (L1, L2 / E5b / B2I)
  • · Centimetre-level positioning accuracy with RTK
  • · RS-232 interface support (38,400 bps)
  • · USB interface support (USB 2.0 Full Speed)
  • · 184-channel u-blox F9 engine
  • · Anti-jamming technology implemented
  • · Suppression of in-band jamming signals up to 80 dB-Hz
  • · Suppression of in-band jamming signals up to 80 dB-Hz
  • · Integrated flash memory
Description

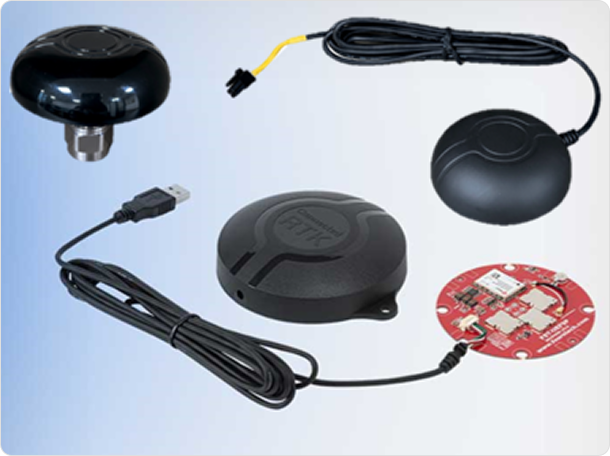

FST-UEF9P is designed to deliver high-precision positioning performance for next-generation applications. The product integrates an LNA, a dual-patch antenna, and the u-blox ZED-F9P chipset with multi-band RTK technology, enabling centimetre-level positioning accuracy.

The FST-UEF9P provides native support for standard RTCM correction messages and delivers centimetre-level navigation performance by receiving correction data from either a local base station or a Virtual Reference Station (VRS). In addition, Fourstech offers a broad range of GPS antenna and receiver solutions, including:

  • · AP Series: Active GPS Antennas
  • · APF9P Series: High-Precision Active GPS Antennas
  • · UNM8L: ADR GPS Receiver
  • · UNM9V: UDR GPS Receiver



Model AP110 AP106LM AP106DM AP406LM APF9P03
Frequency range [MHz] 1575.42 1575.42 1575.42 ~ 1605 1575.42 L1, L2
Small signal gain [dB] 20.0 20.0 20.0 28.0 32/33
LNA noise figure[dB] 0.65 0.65 0.65 0.65 3.0
Supply voltage[V] 3.3 3.3 3.3 3.3 3.3
Power consumption[mW] 15.0 15.0 15.0 70.0 47.8
VSWR < 2.0
Axial ratio[dB] < 3.0
Polarization < 3.0
Type of cable RHCP
Type of connector RG174
Maximum distance[m] SMA, MCX, N, Fakra, 533, GT5
Size [mm] 1575.42 1575.42 1575.42 ~ 16.05 1575.42 L1,L2
Video interface 31.5 x 31.5 x 11.0 45.0 x 45.0 x 13.3 45.0 x 45.0 x 13.3 100 x 25
0A6A6727 0A6A6715 0A6A6716 0A6A6719
